Tamiya 1/14 King Hauler Semi Tractor Kit (Black Edition)
- Brand: Tamiya
- Product Code: TAM56336
- Availability: In Stock

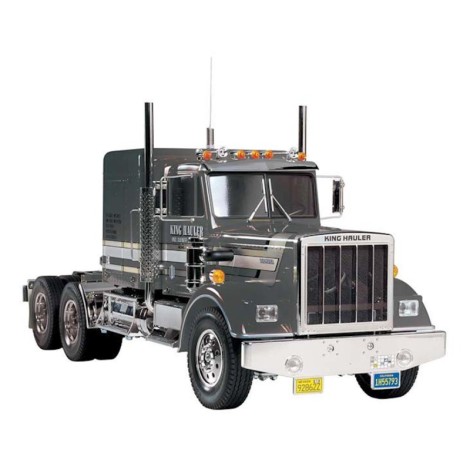

Tamiya 1/14 King Hauler Semi Tractor Kit
The
Tamiya 1/14 King Hauler Black Edition Semi Tractor Kit features a
precision-molded tractor truck body with pre-painted metallic black
parts offset by chrome-plated parts such as the front grille, air
cleaners and more. The tough ladder frame chassis is paired with front
and rear metal leaf spring dampers for excellent performance and
durability. The front-mounted motor provides power to the rear wheels
via propeller shaft, mirroring the system used on actual road-going
trucks, and utilizes a 3-speed transmission with manually-controllable
gear changes.
Specifications:
Length: 692mm, Width: 192mm, Height: 330mm, Weight: Approx. 3.9kg (*with all equipment attached)
Wheelbase: 433mm+103mm
Tread: 156mm (Front), 138mm (Rear, Double Tire)
Chassis: Aluminum & Polycarbonate Resin Ladder Frame
Suspension: Front/Rear Leaf Springs
Caster Angle (Front/Rear): 0°/0°
Camber Angle (Front/Rear): 0°/0°
Toe Angle (Front/Rear): 0°/0°
Dampers: Front/Rear Aluminum Friction Dampers
Drivetrain: Rear 2-Axle Drive
Transmission: 3-Gear Transmission (gear shifting operated from transmitter)
Gear Ratio: (1st Gear) 32.49:1, (2nd Gear) 17.76:1, (3rd Gear) 10.66:1
Diff Gear: 3-Bevel Diff.
Motor: Type 540
Tire Width: 22mm (Front/Rear)
Tire Diameter: 83mm (Front/Rear)
Needed to Complete:
- 4-channel transmitter & receiver
- MFC-01
- 2 servos
- 7.2V battery pack & charger
